Ecosy Hampton Vista 500 Low Oval - 5kw - Defra Approved - Woodburning Stove

Eco Design Approved

**Videos embedded may show the taller version of this stove; however, the workings and performance are identical.**

The Defra Approved 5kw Ecosy+ Hampton Vista 500 Low Oval/Cylindrical is one of the most up to date stoves on the market. UK lab testing has proven this model exceeds the new Eco Design requirements. Separate testing also concluded that this unit is suitable for smoke free zones and is listed on the Defra database. Ecosy+ is a longstanding member of the SIA which is the respected organisation heading up the Eco Design scheme. Want to find out more? Go to stoveindustryassociation.org.

About The Vista 500 Oval/Cylindrical Stove

This advanced wood burning stove has been designed by our sister company Ecosy Stoves of Hampshire, and incorporates all the best bits from their current model range. Having sold tens of thousands of stoves, Ecosy has utilised all they have learned to create a reliable, stylish and efficient stove.

This version of the Hampton Vista 500 stove has been reimagined with curved sides for those looking for a cylindrical, round, or oval stove for their freestanding or fireplace installation.

A huge benefit of this stove, in our view, is its beautifully curved, oval design that still incorporates a flat piece of glass. This is a detail many might overlook, but it can be seen as a real advantage, as flat heat-resistant glass is often much cheaper and easier to replace than curved glass if it is accidentally broken. It’s a stove where you get the look without the additional potential costs further down the line.

In addition to its modern oval design, it also has incredibly low distances to combustibles, making it the perfect stove for many different installation situations, as it ticks so many boxes. We also sell this model as a taller version.

Features on this stove far exceed models that cost north of £1,000. Its huge heat-resistant ceramic glass front gives an uninterrupted view of the fire, which is on the tick list of almost every stove buyer. The hidden gem of this stove is its internal shell, effectively another stove inside the stove. Air is drawn in from the stove's rear, fed between two layers of steel and precisely dispersed over the fire through a series of holes inside the chamber. Having the air introduced high up in the chamber is an effective way of re-burning the initial smoke and pollutants created by the fire. The air that is not dispersed through these holes speeds up as it rises over the fire and is released like a curtain of air over the glass, helping it to keep clean and clear of smoke stains. Many models require a twin-baffle design to achieve clean combustion, but this model stands out as one of the cleanest on the market with just a single baffle. Its innovative design minimises the risk of smoke entering the room when the door is opened, offering both efficiency and convenience. While this feature is often overlooked by prospective buyers, it’s an important detail to consider.

The Vista 500 Low Oval/Cylindrical is a woodburning only stove, therefore does not require a multi-fuel grate or ash pan as wood loves to burn on the base. The stove is lined with thick 30mm vermiculite boards that protect the stove's shell, and its internal steel baffle is removable for sweeping. To the side of the stove is a well-engineered dial which gives an incredibly accurate degree of control over the fire as the vent plate is mechanically attached to the body. The Vista 500 Oval has a beautifully shaped cast iron door which sits upon an elegant base, giving the stove great presence which looks fantastic freestanding.This model includes the newly curved black handle, which discreetly blends into the stove while providing easy release and a tight, secure lock. As with all parts of the Vista 500 Oval, they are well-designed and engineered, but not over-complicated. Too often, stoves have over-complicated systems that do not stand the test of time and can be incredibly expensive and complicated to fix. So confident of their quality, Ecosy Stoves offer a 7 year warranty.

Heat Output Range

The Vista 500 Oval/Cylindrical has a 5kw nominal output, which can make installation a lot easier as no air brick is required (for more information on air brick requirements, please click here). However, it benefits from a 3.5kw to just under 7.1kw range, meaning this stove can be suitable for a large number of spaces from small to large.

Optional Extras

• Option: 1000mm length of matching flue.
• Option: Ceramic glass is not covered under the guarantee for any stove on the market. Ceramic glass is fully heat resistant but will break if struck with a log or similarly hard object. This glass is expensive, but for a small fee we are offering to guarantee it for a full year. This covers any accidental chips or cracks and photographic evidence will be required. This covers one claim only, not multiple breakages.
• Option: Spare rope kit, glue and glass clips for servicing.
• Option: Direct Air Feed Kit – Channels air directly from outside into the stove. This is not usually required, as models rated at 5kW or below generally do not need additional ventilation.

7 Year Guarantee

This covers the stove's body and not the internal perishable parts like grates and fire bricks. Guarantee is activated when the stove is invoiced. 6-digit number on the top of each invoice is the warranty number. For stove to be covered it must be installed by a HETAS/OFTEC engineer or signed off by building control.

Stove Features

• SIA ecodesign Approved
• Defra Approved
• Over 81% efficient
• Single baffle design (Important feature, often overlooked)
• Wood-burning only with flat firebrick base
• Very low distances to combustibles (100mm at the rear and 200mm at the sides when a twin-walled flue is fitted directly to the stove)
• KW Range - 3.5kw to 7.1kw (5kw nominal and shown on data plate)
• Suitable for 12mm hearth

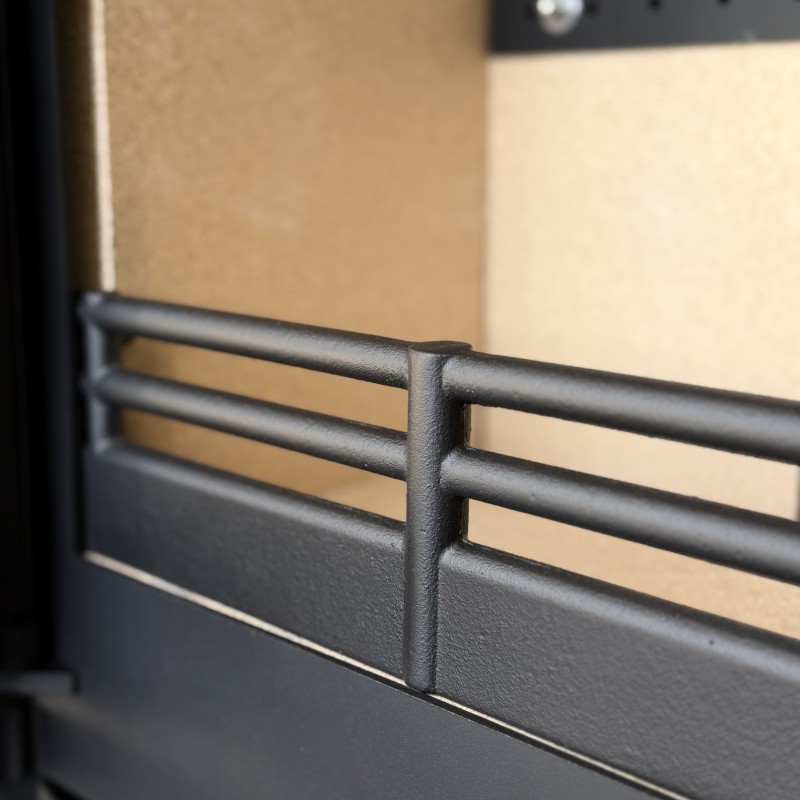

• Tall log guard

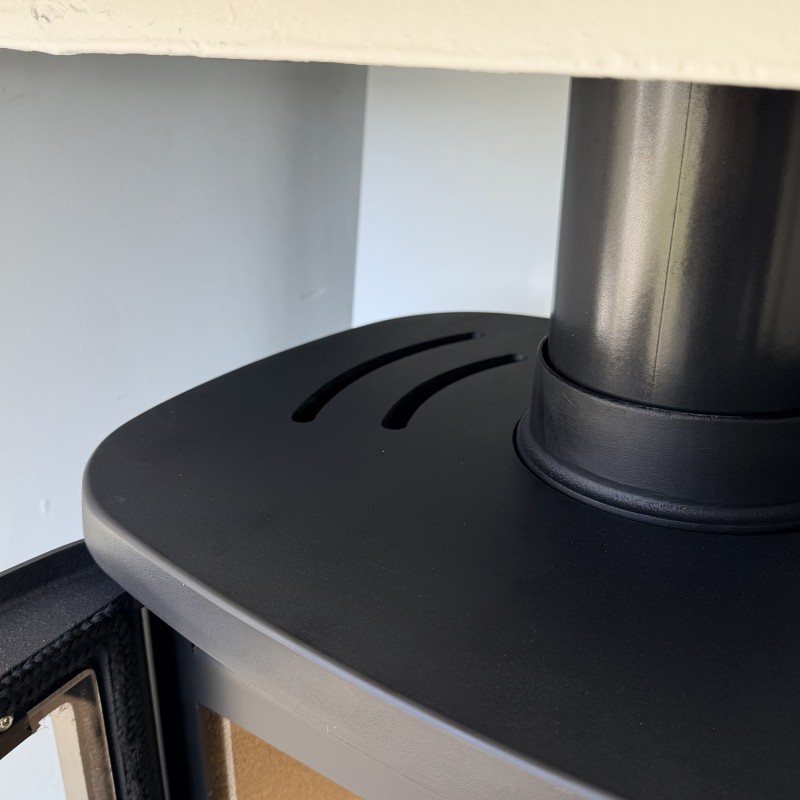

• Top and rear flue outlet
• FREE printed oven glove
• Smooth cast iron fascia

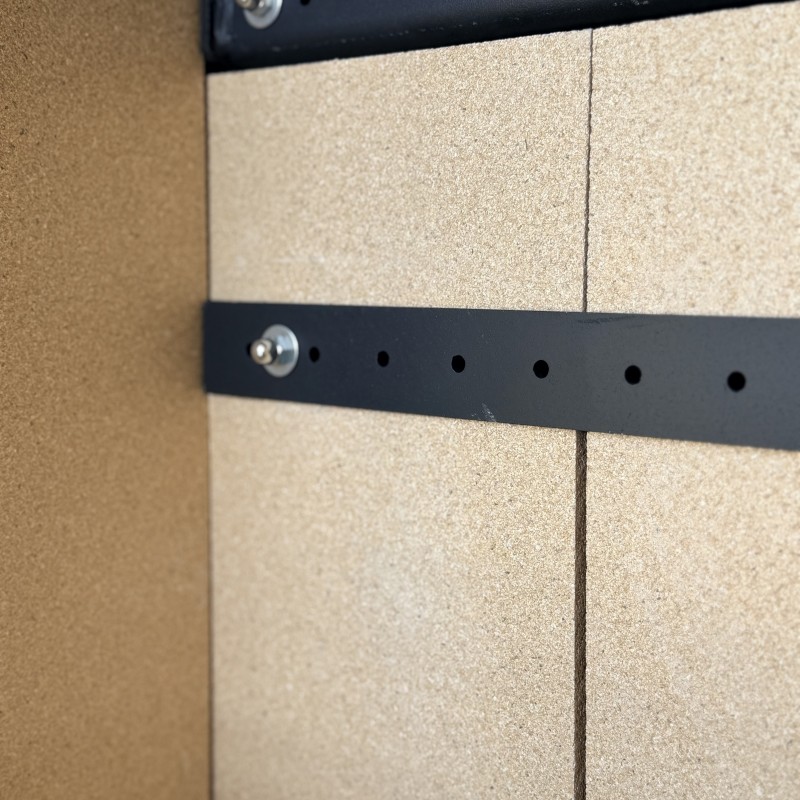

• Full vermiculite brick lining and base (No grate or ash pan required for wood-burning only stoves)
• Finished in heat-resistant matte black paint
• Flue diameter 125mm (5'') with choice of top or rear flue outlet
• Typical log approx 250mm long
• Pre-heated air wash system to help keep the glass clean
• Tertiary air system that re-burns the smoke for a clean and efficient burn
• Air Brick/Vent Required? No (Some exceptions apply)

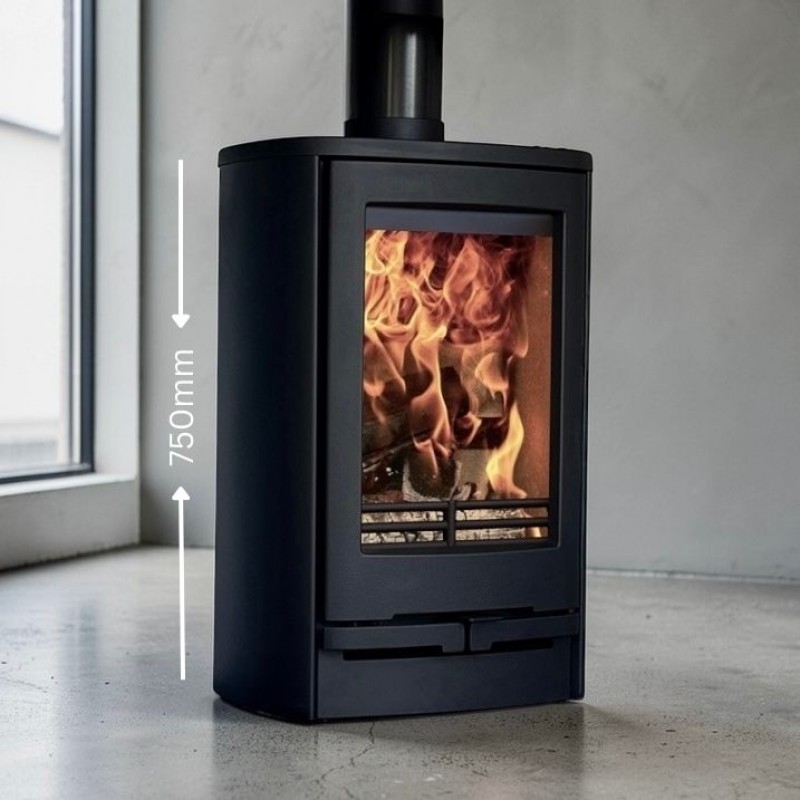

• Height: 750mm, 29.52 inches
• Width: 495mm, 19.48 inches
• Depth: 380mm 14.96 inches
• Distance from the back of stove to centre of top flue 159mm 6.2 inches
• Distance from floor to centre of rear flue 607mm 23.89 inches
• 5" (125mm) top and rear flue collar included

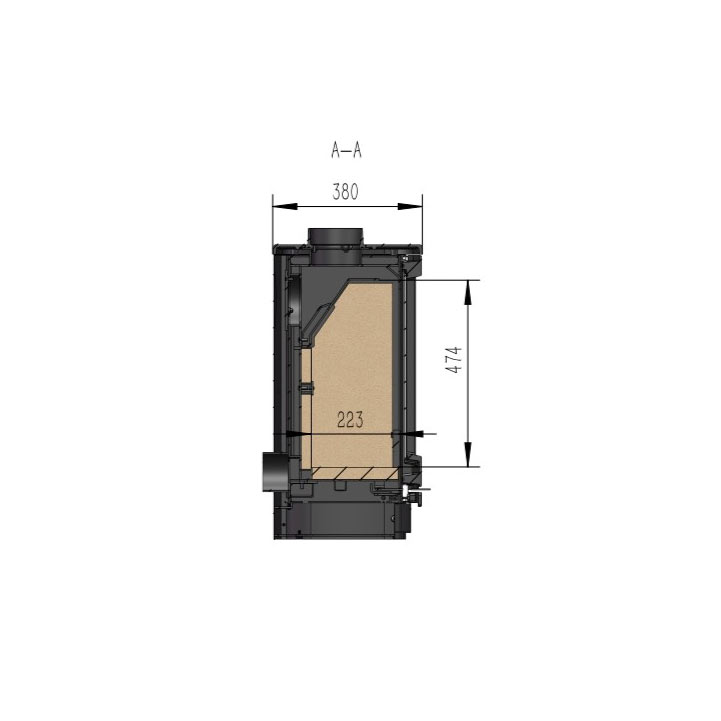

• Internal width 332mm - Internal depth 223mm - Internal height 474mm
• Glass side: 485mm x 335mm

Stove Construction

The Vista 500 Oval/Cylinder is a “hybrid” stove, and its body is constructed from quality Q235B carbon steel that has been chosen for its plasticity, toughness and weldability. The door is made from very thick mineral cast iron that helps retain the heat and slowly release it into the room. Having a cast iron door also enables us to add features like the shallow curves on the top and bottom. The stove weighs over 100kg.

How Are Our Prices So Good?

This is a common question we get asked, and we understand why people wonder how it can be done at such a good price. We are very unique in the way we operate and occupy the whole supply chain through the brands we own. Opposed to only selling to the trade we primarily offer trade prices direct to the end user. This completely cuts out any middle men. We can stock over 5000 stoves at any one time and ship direct to the end user with no showrooms. We always suggest prospective buyers take a look at our glowing feedback that currently has over 7000 positive comments on our stoves and stove products.

DEFRA Approved

The Vista 500 Oval has been rigorously tested and approved to burn wood in smoke controlled zones. Defra approved stoves with 5" flue outlets, like this one, can also be installed with a 5" liner. The Defra approval has been achieved by factory fitting a mechanical stop to prevent secondary air closure beyond the 8mm open position.

Guide to Your First Burn

The first burn is an essential part of your stove’s life cycle - it allows the paint, sealants, and internal components to cure properly, ensuring maximum performance, efficiency, and longevity.
