Ecosy+ Copse - 5kw - Defra Approved - Eco Design Approved - Woodburning Stove

Copse 5

The Copse 5 has been designed by our manufacturing partner Ecosy+ stoves of Hampshire before being sent off to the renowned Kiwa Gastec to be rigorously tested. These test showed that all Copse models exceed the very tough SIA Eco Design regulations that are now in place. In addition to this, they have also been approved for use in smoke-free zones (Defra Approved). Exceeding the eco design test is a true mark of a quality stove; inferior products that are not well engineered will fail often fail this test. Ecosy+ stoves, along with the other key UK stove brands is a member of the SIA and submits documentation proving that the technical claims we display, are legitimate. Ecosy+ stoves are well reviewed amongst the public and qualified installers. Want to find out more? Go to stoveindustryalliance.com.

About the stove and how it works

This modern, wide-bodied stove is designed to suit a huge range of UK homes and fireplace styles. Striking the perfect balance between contemporary and traditional, it features an elegant hybrid design that is neither too modern nor too classic. A smooth, laser-cut steel body is paired with a thick cast-iron door, giving the stove impressive depth, texture, and lasting visual appeal.

This well engineered stove has an impressive secondary / tertiary burn and twin baffle design. The two work in tandem to recycle the initial smoke produced by the fire and continue to burn it off before it is expelled from the stove. The stoves high efficiency (over 82%) and low particulate output, demonstrate this is working well. The stove is a wide body design and boasts a large heat-resistant, ceramic SCHOTT glass front that gives an uninterrupted view of the fire. Something that is on the tick list of almost every stove buyer. The stoves high speed, pre-heated air-wash system ensures that warm air is rushing onto this glass, helping to keep it free of smoke stains.

Construction

. The Copse range of stoves features steel-bodied construction with thick cast-iron doors, widely regarded as the preferred build method in modern stove design. Each stove boasts an exceptionally robust 8 mm thick top plate and a fully seam-welded body for outstanding strength and durability.

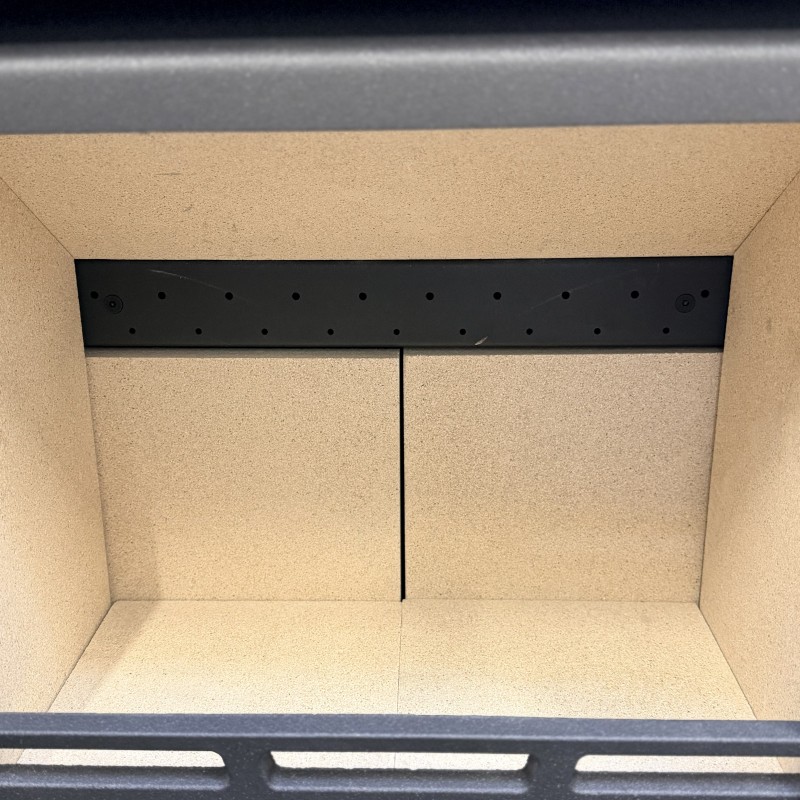

The stove top becomes hot enough to boil a kettle or cook, while its substantial thickness allows it to continue radiating heat long after the fire has died down. Internally, every stove is fully lined with vermiculite panels, helping to protect the stove body and significantly extend its lifespan.

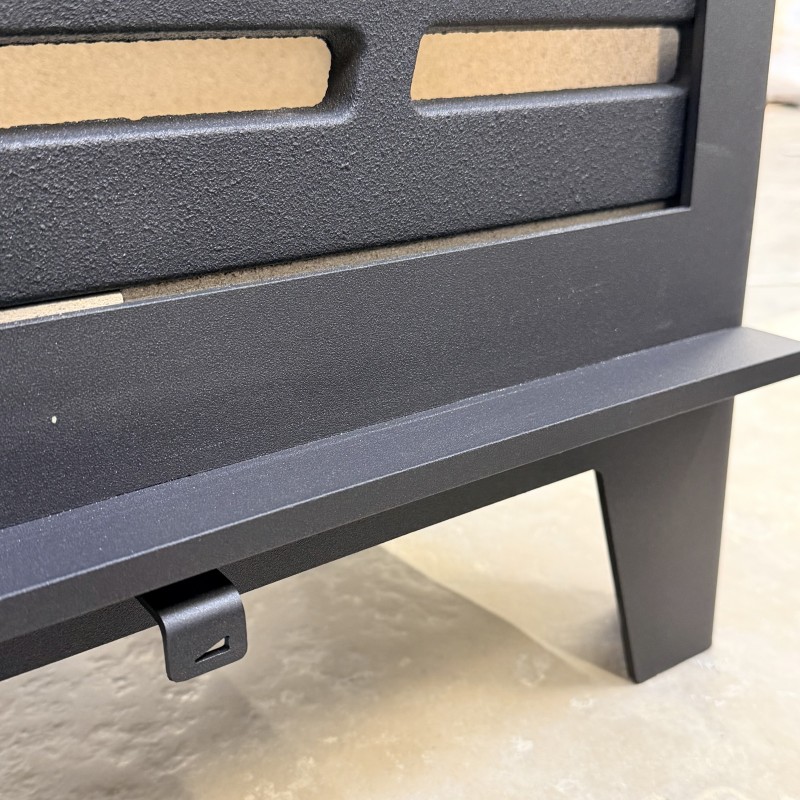

All models are supplied with both top and rear flue outlets, along with adjustable feet to allow easy levelling on uneven hearths or floor

5 Year Guarantee

This covers the stove's body and not the internal perishable parts like grates and fire bricks. Guarantee is activated when the stove is invoiced. 6-digit number on the top of each invoice is the warranty number. For stove to be covered, it must be installed by a HETAS / OFTEC engineer or signed off by building control.

Stove Features

• Eco Design Approved
• DEFRA APPROVED
• Heat Output 5kw - With a maximum output of around 8kw!
• Over 82% efficient
• CE approved
• Woodburning Only - Designed to burn wood in the most efficient way.
• Distance to combustible materials at the rear (550mm)
• Distance to combustible materials at the side (450mm)
• Suitable for 12mm hearth.
• (Checkout Option) 80mm direct air spigot if required ( In most cases this will not be required, as the stove has a nominal output of 5kw and can draw air from the room )
• Design and Tested in the UK - All tests carried out by KIWA Gastec in Cheltenham
• Cool to touch black handle as standard
• Hot top - Great for cooking on
• Thick cast iron door
• Top and rear flue outlet
• Full vermiculite brick lining
• Finished in heat resistant matt black paint
• Flue diameter 125mm (5'') with choice of top or rear flue outlet
• 8mm thick steel top, 5mm thick body
• Pre-heated air wash system to help keep the glass clean
• Tertiary air system that re-burns the smoke for a clean and efficient burn.
• Air Brick/Vent Required? Yes
• Model Range - Newburn
• Brand - Ecosy+

Dimensions

• Height : 665mm
• Width: 490mm
• Depth: 382mm
• Distance from the back of stove to centre of top flue 103mm
• Distance from floor to centre of rear flue outlet
• 125mm 5" top and rear flue collar included
• Glass Size - 365mm x 395mm
• Internal stove dimensions -  H: 330mm W: 415mm D: 225mm
• Weight: 85kg

Options

1. Direct air feed box only- This box bolts to the stove's air inlet and makes it a room sealed stove, perfect for new builds. A direct air feed pipe (bought separately) can connect to this box and draw in in directly from the outside. The spigot on the box is 80mm (Again, please note that the pipe itself not included with this option).

2.Direct air feed box AND 1500mm direct air feed kit. This will comprise of the Hooga direct air feed box and a kit consisting of 1500mm 80mm ducting, an external cap and 2 x small jubilee clips. Please search 'direct air feed kits' on the website to see the product listing and pictures.

3. Companion set - Please see images on the gallery. Click here for further details.

4. Ceramic glass is not covered under the guarantee for any stove on the market. Ceramic glass is fully heat resistant but will break if struck with a log, or similarly hard object. This glass is expensive, but for a small fee we are offering to guarantee it for a full year. This covers any accidental chips or cracks and photographic evidence will be required. This covers one claim only, not multiple breakages

How Are Our Prices So Good?

This is a common question we get asked, and we understand why people wonder how it can be done at such a good price. We are very unique in the way we operate and occupy the whole supply chain through the brands we own. Opposed to only selling to the trade we primarily offer trade prices direct to the end user. This completely cuts out any middle men. We can stock over 5000 stoves at any one time and ship direct to the end user with no showrooms. We always suggest prospective buyers take a look at our glowing feedback that currently has over 7000 positive comments on our stoves and stove products.

DEFRA Approved

This version of the Copse has been rigorously tested and approved to burn wood in smoke controlled zones. Defra approved stoves with 5" flue outlets, like this one, can also be installed with a 5" liner. The Defra approval has been achieved by factory fitting a mechanical stop to prevent secondary air closure. This can be removed prior to install if you do not require or want a Defra approved stove.
