Eco Design Approved
The Defra Approved Ecosy+ Panoramic 9 is one of the most up-to-date stoves on the market. UK lab testing has proven this model exceeds the new Eco Design requirements. Separate testing also concluded that this unit is suitable for smoke-free zones and is listed on the Defra database. Ecosy+ is a long-standing member of the SIA which is the respected organisation heading up the Eco Design scheme. Want to find out more? Go to stoveindustryalliance.com.
Slimline
This stove answers a lot of customers' problems - they need a very wide unit that is not very deep. The external body is very wide (624mm) but the depth of the stove is a shallow (318mm). The Panoramic 9 also has a twin layer construction - the inner layer has been tapered in at the sides, making the fire box slightly smaller and therefore reducing the potential heat output. The widest point of the firebox is still 500mm wide, meaning large logs are not a problem for this stove!
About
This advanced wood burning stove has been manufactured by our sister company Ecosy+ of Hampshire and incorporates all the best bits from their current model range. Having sold tens of thousands of stoves, Ecosy+ has utilised all they have learned to create a reliable, stylish and efficient stove.
Features on this stove far exceed models that cost north of £1000. Its curved heat-resistant ceramic glass doors give an uninterrupted view of the fire, which is on the tick list of almost every stove buyer. The hidden gem of this stove is its internal shell - effectively another stove inside the stove, where air is drawn in from the stove's rear, fed between two layers of steel and precisely dispersed over the fire through a series of holes inside the chamber. Having the air introduced high up in the chamber is an effective way of re-burning the initial smoke and pollutants created by the fire. The air that is not dispersed through these holes speeds up as it rises over the fire and is released like a curtain of air over the glass, helping it to keep clean and clear of smoke stains.
The Panoramic 9 is a wood burning only stove, therefore does not require a multi-fuel grate or ash pan, as wood loves to burn on the base. The stove is however lined with thick 30mm vermiculite boards that protect the stoves shell and its internal steel baffle is removable for sweeping. Underneath is a discrete lever that gives an incredibly accurate degree of control over the fire with a simple push to the left or right. The Panoramic 9 Twin Door has beautifully shaped cast iron doors that frame the fire within. This one of the best looking stoves that we sell and looks amazing lit! This model includes the very popular, cool to touch wooden handle that is practical but also looks great. As with all parts of the Panoramic, they are well-designed and engineered but not over-complicated. Too often stoves’ have over-complicated systems that do not stand the test of time and can be incredibly expensive and complicated to fix. We are so confident of the stoves quality, we offer a 5 year warranty.
Heat Output Range
The Panoramic 9 has a 7kw nominal output. However, it benefits from a 5kw to 10kw range, meaning this stove can be suitable for numerous spaces from the medium to the rather large. (Output range numbers are rounded up).
5 Year Guarantee
(This covers the stove's body and not the internal perishable parts like grates and fire bricks). Guarantee is activated when the stove is invoiced. 6 digit number on the top of each invoice is the warranty number. For stove to be covered it must be installed by a HETAS engineer or signed off by building control.
679.00 In StockEcosy+ Panoramic 9 Twin Door - Ecodesign - Slimline Wood Burning Stove (10kw Maximum Output)
- Brand: Panoramic
- Product Code: Panoramic 9 Twin Door
- Availability: In Stock
-
Price: £679.00
- Ex Tax: £565.83
Eco Design Approved
The Defra Approved Ecosy+ Panoramic 9 is one of the most up-to-date stoves on the market. UK lab testing has proven this model exceeds the new Eco Design requirements. Separate testing also concluded that this unit is suitable for smoke-free zones and is listed on the Defra database. Ecosy+ is a long-standing member of the SIA which is the respected organisation heading up the Eco Design scheme. Want to find out more? Go to stoveindustryalliance.com.
Slimline
This stove answers a lot of customers' problems - they need a very wide unit that is not very deep. The external body is very wide (624mm) but the depth of the stove is a shallow (318mm). The Panoramic 9 also has a twin layer construction - the inner layer has been tapered in at the sides, making the fire box slightly smaller and therefore reducing the potential heat output. The widest point of the firebox is still 500mm wide, meaning large logs are not a problem for this stove!
About
This advanced wood burning stove has been manufactured by our sister company Ecosy+ of Hampshire and incorporates all the best bits from their current model range. Having sold tens of thousands of stoves, Ecosy+ has utilised all they have learned to create a reliable, stylish and efficient stove.
Features on this stove far exceed models that cost north of £1000. Its curved heat-resistant ceramic glass doors give an uninterrupted view of the fire, which is on the tick list of almost every stove buyer. The hidden gem of this stove is its internal shell - effectively another stove inside the stove, where air is drawn in from the stove's rear, fed between two layers of steel and precisely dispersed over the fire through a series of holes inside the chamber. Having the air introduced high up in the chamber is an effective way of re-burning the initial smoke and pollutants created by the fire. The air that is not dispersed through these holes speeds up as it rises over the fire and is released like a curtain of air over the glass, helping it to keep clean and clear of smoke stains.
The Panoramic 9 is a wood burning only stove, therefore does not require a multi-fuel grate or ash pan, as wood loves to burn on the base. The stove is however lined with thick 30mm vermiculite boards that protect the stoves shell and its internal steel baffle is removable for sweeping. Underneath is a discrete lever that gives an incredibly accurate degree of control over the fire with a simple push to the left or right. The Panoramic 9 Twin Door has beautifully shaped cast iron doors that frame the fire within. This one of the best looking stoves that we sell and looks amazing lit! This model includes the very popular, cool to touch wooden handle that is practical but also looks great. As with all parts of the Panoramic, they are well-designed and engineered but not over-complicated. Too often stoves’ have over-complicated systems that do not stand the test of time and can be incredibly expensive and complicated to fix. We are so confident of the stoves quality, we offer a 5 year warranty.
Heat Output Range
The Panoramic 9 has a 7kw nominal output. However, it benefits from a 5kw to 10kw range, meaning this stove can be suitable for numerous spaces from the medium to the rather large. (Output range numbers are rounded up).
5 Year Guarantee
(This covers the stove's body and not the internal perishable parts like grates and fire bricks). Guarantee is activated when the stove is invoiced. 6 digit number on the top of each invoice is the warranty number. For stove to be covered it must be installed by a HETAS engineer or signed off by building control.
Overnight Burn
The Ecosy+ Panoramic has an excellent overnight burn system. Its airtight door gaskets and manually-controlled air flow controls allow you to close the stove right down overnight and wake up to a warm house in the morning. All you will need to do is reopen the air controls, add a little wood and watch the fire roar again. Please note that an overnight burn can take time to master and relies heavily on the fuel being burnt. Please also note that you can only achieve this if you are able to remove the DEFRA stop!
Stove Features
- Eco Design Approved
- HETAS (Cleaner Choice) approved, with a 61% improvement on the clean air act limit.
- View on HETAS website.
- Defra Approved
- Woodburning only with flat fire brick base
- Reduced distance to combustibles materials (250mm side - 425mm rear)
- Slimline - 624mm wide and 318mm deep
- KW Range - 5kw to 10kw (7kw nominal and shown on data plate.)
- Suitable for 12mm hearth.
- Top and rear flue outlet.
- FREE Ecosy+ printed oven glove.
- Wooden handle
- Full vermiculite brick lining and base. (No grate or ash pan required for woodburning only stoves.)
- Finished in heat resistant matt black paint.
- Flue diameter 125mm (5") with choice of top or rear flue outlet
- Typical log approx 480mm long
- Gross weight - 100kg
- Pre-heated air wash system to help keep the glass clean
- Tertiary air system that re-burns the smoke for a clean and efficient burn.
- Air Brick/Vent Required? Yes
- Option: 1000mm length of matching flue
- Option: Extra tall log guard is offered on checkout - Standard Height is 60mm at the highest point. The additional bar adds 50mm to the overall height.
- Option: Ceramic glass is not covered under the guarantee for any stove on the market. Ceramic glass is fully heat resistant but will break if struck with a log, or similarly hard object. This glass is expensive, but for a small fee we are offering to guarantee it for a full year. This covers any accidental chips or cracks and photographic evidence will be required.
- Option: Spare rope kit, glue and glass clips for servicing
- Option: Direct air feed kit. This is required if you plan on drawing air directly from the outside, into the stove, instead of installing an air brick which feeds the whole room with air. Required for new builds.
- Option: Custom rear flue box for fitting flue at the rear - See listing for more details.
- Option: Companion set - See listing for more details

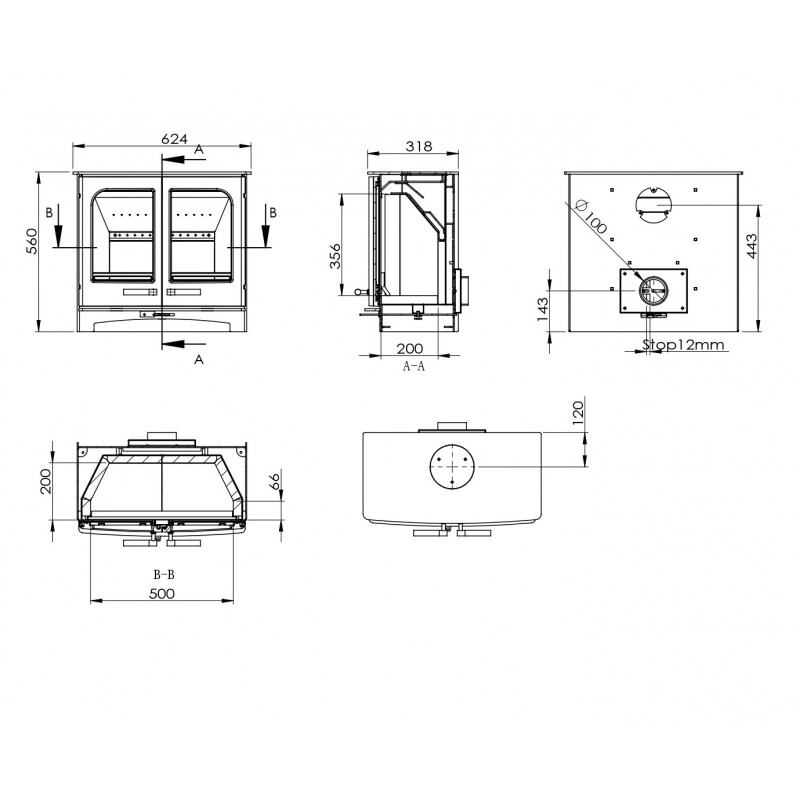

Dimensions
- Width: 624mm - 24.50 inches
- Height: 560mm, 22.04 inches.
- Depth: 318mm 12.90 inches.
- Distance from the back of stove to centre of top flue 130mm 5.1 inches.
- Distance from floor to centre of rear flue outlet 444mm - 17.48 inches.
- 125mm 5" top and rear flue collar included.
- Glass Size - 340mm x 230mm
- Internal stove dimensions - 500mm at the widest point - 375mm at the tapered rear - 350mm high - 180mm deep
Stove Construction
The Panoramic is a "hybrid" stove and its body is constructed from quality Q235B carbon steel, that has been chosen for its plasticity, toughness and weldability. The doors are made from very thick mineral cast iron that helps to retain the heat and slowly release it into the room. Having cast iron doors also enables us to add features like the shallow curves on the top and bottom. The internal lining is vermiculite and these are easy to replace. The stove weighs over 100kg.
Why Are We So Cheap?
This is a common question we get asked, and we understand why people wonder how it can be done at such a good price. We are very unique in the way we operate and occupy the whole supply chain through the brands we own. Opposed to only selling to the trade, we primarily offer trade prices direct to the end user. This completely cuts out any middle men. We can stock over 5000 stoves at any one time and ship direct to the end user with no showrooms. We always suggest prospective buyers take a look at our glowing feedback that currently has over 7000 positive comments on our stoves and stove products.
The Panoramic Range
Panoramic stoves are Ecodesign ready and come in a range of styles and sizes, so there’s a design to fit every home.
Slimline
The original Panoramic is a large wood-only stove that has been made with a smaller internal shell to maintain a 5kw output. This means you can fill a larger fireplace and still have a spectacular view of the fire, but don’t have to worry about installing an air vent (some exceptions apply).
Traditional
The Panoramic Traditional features the same iconic glass front, but the door has been reimagined in a classical style with square details, sitting flatter against the stove than the original and designed to feel at home in a rustic fireplace.
Cast Base
If you have a larger fireplace and are looking for something that will fill it out nicely, the Panoramic with Cast Base or the Panoramic Traditional with Cast Base adds extra height and width and will fit in modern and traditional fireplaces.
Log Store
The Panoramic stove can also be purchased with a fitted log store to really make it a centrepiece. The sturdy log store adds 283mm of height to the stove, and provides a great place to keep plenty of logs warm, dry, and ready to light.
Twin Door
If you are looking for a stove that will really make a statement, the Twin Door Panoramic or the Twin Door Panoramic with Stand are the perfect option. Both make for a stunning centrepiece in a traditional fireplace or freestanding.
Multi-fuel
If you would like to burn smokeless coal as well as wood, we stock a multi-fuel Panoramic and a multi-fuel Panoramic Traditional.
Stove Fittings | |
Fittings | Chrome fittings and long handle for easy use and leverage |
Baffle Plate | Steel baffle plate |
Stove Accessories | |
Accessories | Ash pan/oven glove/tool/manual |
Stove Features | |
Burn Length | Deep overnight burn |
Legs | Fixed |
Grate | No Grate - Woodburning only |
Efficiency | Very efficient "Huge saving on bills" Slow Burn (Efficient) |
Cleaning | Pre heated airwash system |
Seals | Heat resistant fire rope seals |
Stove Dimensions | |
Height | 560mm |
Width | 624mm |
Depth | 318mm |
Distance from back of stove to centre of top flue outlet | 130mm |
Distance from floor to centre of rear flue outlet | 444mm |
Outlets | 125mm 5" top and rear flue collar included |
Power | Range - 5kw to 10kw |
